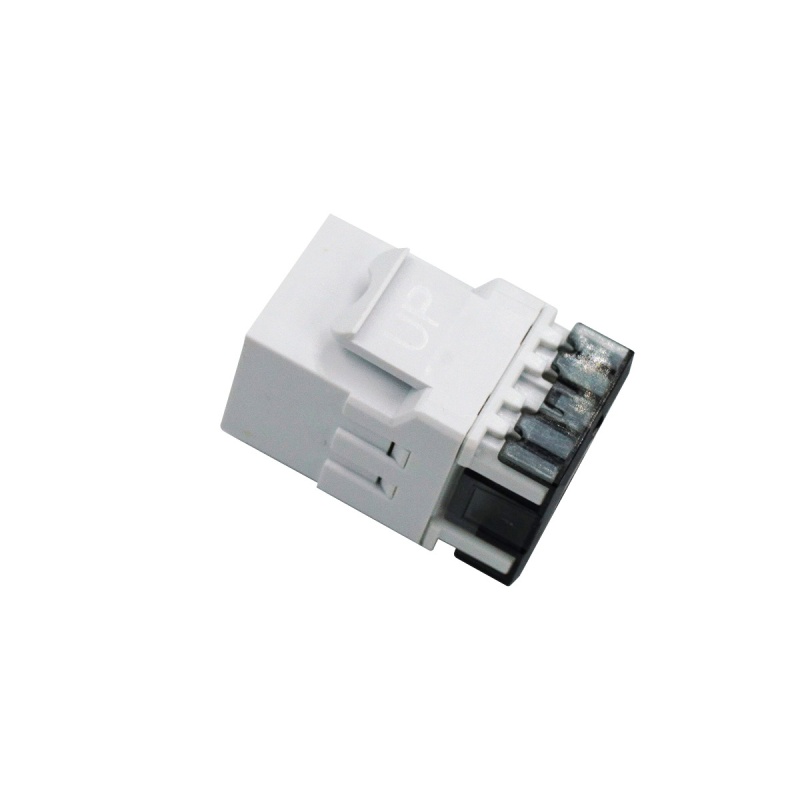

Cat. 5e UTP 180 Degree Punch Down Keystone Jack with Shutter

UC80-5ED

Category 5e modular jack, RJ-45 keystone jack, 8position 8 conductor(8P8C) provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advance printed circuit board provides optimum signal quality with maximum headroom. Designed to easily snap in and out of wall outlets, patch panels and surface boxes.

  • Dust door & shuttered door available
  • ANSI/TIA-568.2-D
  • UL safety listed
  • RoHS compliant


  • Specification
  • Drawing
  • Order Info

Specification

  • Meets TIA/EIA-568.2-D Cat.5e requirements
  • IDC Type: Dual



Electrical

  • Insulation Resistance : 500 MΩhm minimum @ 100 Vdc
  • Dielectric Withstanding Voltage : 1000 Vac rms @ 60Hz for one minute
  • Current Rating : 1.5 Amps
  • Spring wire contact resistance : 20 mΩhm maximum
  • IDC Contact resistance : 2.5 mΩhm maximum



Mechanical

  • Total Contact force : >100 GRAMS per contact wire lead
  • Retention : 50 N(11 Ibf) for 60s ± 5s
  • Durability : 750 cycles minimum
  • Conductor compatibility : 22 ~ 24AWG
  • Temperature range storage : -40℃ ~ +70℃
  • Temperature range operation : -10℃ ~ +60℃
  • Relative humidity operation : Maximum noncondensing 93%



Materials

  • Housing : High lmpact flame retardant plastic,UL 94 V- 0 Rated
  • PCB : FR4, 1.6mm thickness
  • Spring wire : Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70 ~ 100 micro-inch of nickel
  • IDC : Phosphor Bronze alloy plated with 100 micro-inch of tin

Part Number

Description

Color

UC80-5ED

Cat. 5e UTP 180 Degree Punch Down Keystone Jack with Shutter

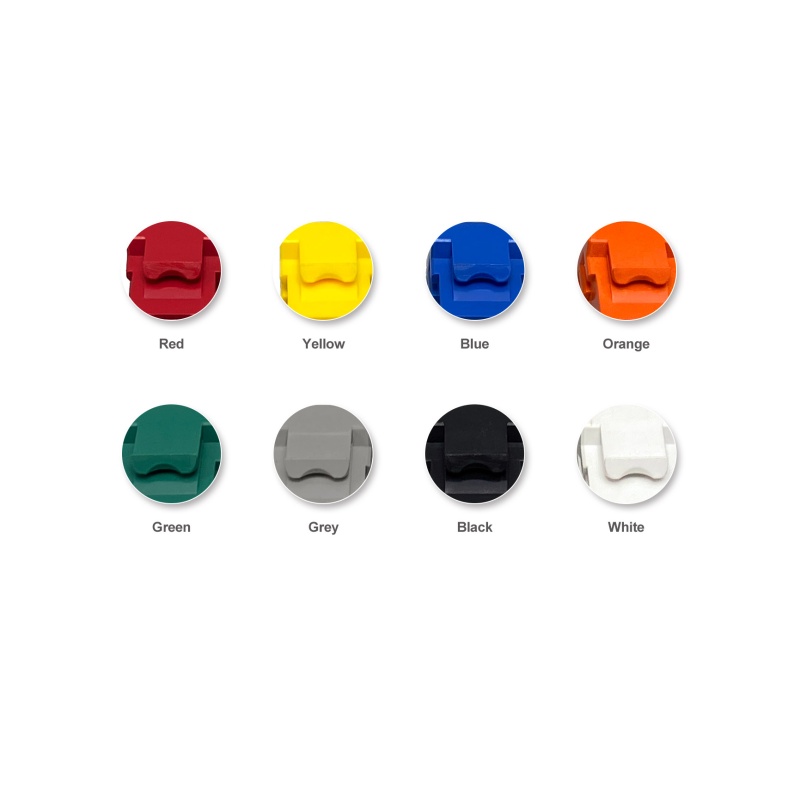

White, Black, Grey, Red, Orange, Yellow, Green, Blue
