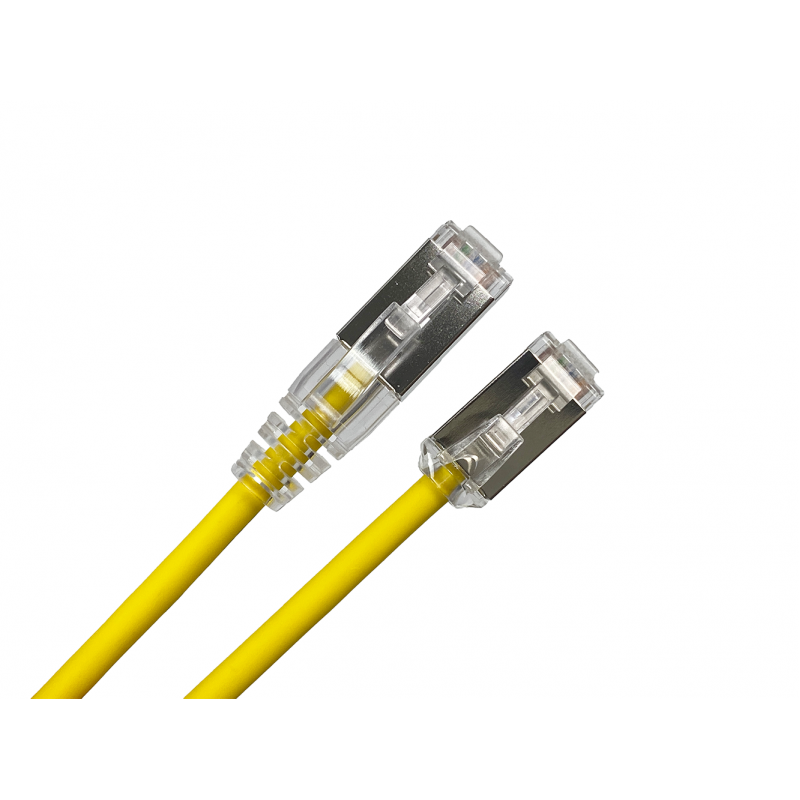

Cat. 6A U/FTP 28AWG Patch Cord, LSOH

SEC-6A8H XM-LZ

Cat. 6A U/FTP Patch Cord is specifically designed to support high speed data networks and are fully tested to meet ANSI/TIA-568.2-D & ISO 11801 2nd.

 Cat. 6A U/FTP Patch Cord is for use in health care, manufacturing, casinos and other environments where alien crosstalk may be a concern.

  • Cat. 6A Patch Cord Performance up to 500MHz
  • Complete in-house design-production integration
  • Meet several flammability/safety requirements
  • Meets ANSI/TIA-568.2-D & ISO 11801 2nd
  • Made in Taiwan
  • World class production/QC equipment





Downloads
  • Specification
  • Drawing
  • Order Info

Standards

  • Complied with ANSI/TIA-568.2-D
  • IEC11801
  • EN 50173
  • EN 55022
  • IEC 60332-1



Construction

Conductor Stranded plain anneal bare copper wire 7/0.128 +0/-0.008 mm (AWG28)
Insulation Polyethylene, 0.81+/-0.05 mm
Twisting 4 twisted pair, 2 cores to the pair
Twisted pair color code:
1: white-blue / blue 2: white-orange / orange
3: white-green / green 4: white-brown / brown
Cable lay up 4 pairs with different pitches
Outer diameter 4.7 +/-0.3 mm


Mechanical Properties

Bending radius Њ 4xOD without load
Њ 8xOD with load
Temperature range,
during operation -20°C up to 60°C
during installation 0°C up to 50°C



Electrical Properties (at 20°C ± 5°C)

DC resistance max. 26 Ω / 100 m at 20 °C
Resistance unbalance max. 5 % at 20 °C
Insulation resistance (500V) min. 5000 MΩ/Km at 20 °C
Mutual capacitance nom. 5.6 nf / 100 m at 1 kHz
Capacitance unbalance (pair to ground) max. 330 pf / 100 m at 1 kHz
Nominal velocity of propagation nom. 78 %
Test voltage (DC, 1 min) 1 kV / 1 min

P/N

Description

Colour

SEC-6AH XM-LZ

Cat. 6A U/FTP 26AWG, Patch Cord, LSOH

 01-08

SEC-6A8H XM-LZ

Cat. 6A U/FTP 28AWG, Patch Cord, LSOH

 01-08
