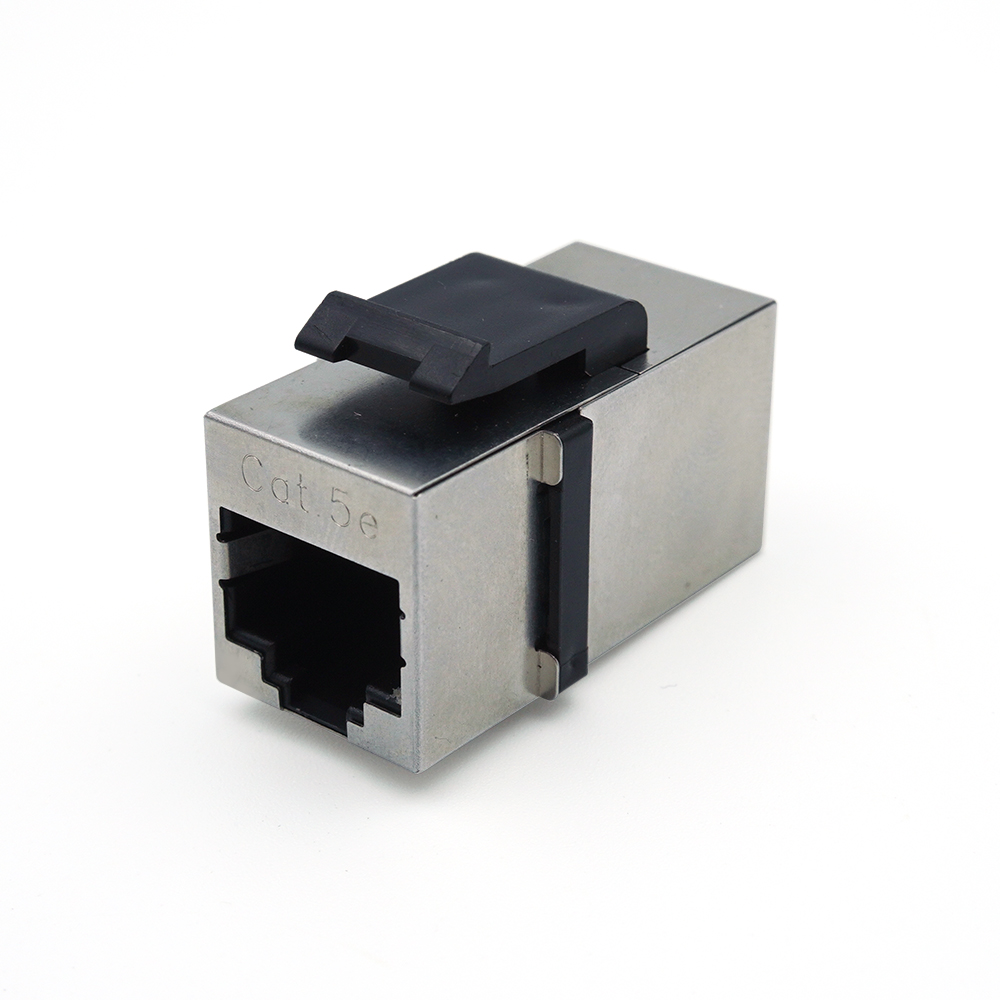

Cat.5E STP Inline Coupler

SC20-5EA

Cat.5e Inline Couplers help you make the correct connection when you need to link several networking cables together or need to extend cable runs without performance degradation.

RJ45 feed through coupler is designed for computer networking, voice and data applications. Designed for use with ethernet cables, as well as compatible with standard blank patch panels and wallplates.

Inline Couplers provide an 8 conductor, female-to-female feed-through connection for simplified cable hook-up. Manufactured with gold-plated terminals to resist corrosion for years of continued use.



  • Specification

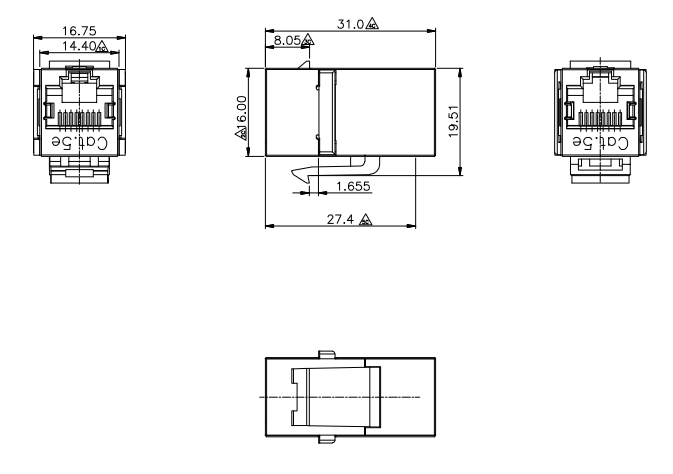

  • Drawing
  • Order Info

Specification

  • Meets TIA/EIA-568.2-D

Electrical

  • Insulation resistance: 500MΩhm minimum@100 Vdc
  • Dielectric withstanding voltage: 1000 Vac rms@60Hz for one minute
  • Current Rating: 1.5 Amps
  • Spring wire contact resistance: 20 mΩhm maximum

Mechanical

  • Total contact force: >100 GRAMS per contact wire lead
  • Retention: 50 N (11 Ibf) for 60s ± 5s
  • Durability: 750 cycles minimum
  • Temperature storage: -40°C to +70°C
  • Temperature operation: -10°C to +60°C
  • Relative humidity operation: Maximum noncondensing 93%

 Materials

  • Shielded:Stainless steel
  • Housing:High impact flame retardant plastic, UL 94V-0 rated
  • PCB: FR4, 1.6mm thickness
  • Contact:Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 of gold over 70~100 micro-inch of nickel

P/N

Description

SC20-5EA

Cat 5e STP Inline coupler

SC20-6CA Cat 6 STP Inline coupler
